Electric rim locks with security and Private function are becoming increasingly popular.They are widely suitable for residential iron gates, apartment entrances door and other access control systems.
1、What is an Electric Rim Lock?
An electric rim lock is a surface-mounted lock with electronic system,you can open the door using a mechanical key or remote control.

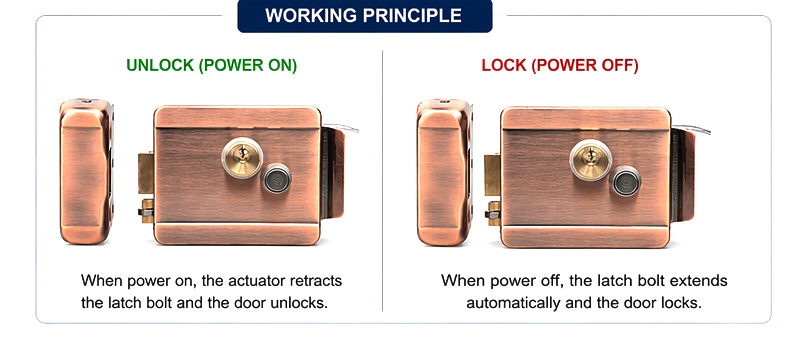

2、How Does an Electric Rim Lock Work?
When the electric rim lock is successfully connected to DC 12V or DC 24V, it can be unlocked after receiving an electrical signal.
3、Electric Rim Lock vs Mechanical Rim Lock
|
Category |
Electric Rim Lock | Mechanical Rim Lock |
|
Control |
Remote / Access System | Key |
|
Security |
Higher |
Medium |
| Convenience | Intelligent & Fast |
Traditional & Slow |
| Installation | Easy & Connect Power |
Very Easy, no wiring needed |
|
Power |
DC 12V or 24V | No Power |
|
Durability |
High & Electrical Components |
Mechanical Structure |
| Maintenance | Medium |
Low |
|
Cost |
Higher | Lower |
| Application | Smart Homes Iron Gate |
Basic Home Security |
3.1 Electric Rim Lock vs Mechanical Rim Lock
Electric rim locks are used for more security door upgrade，it can offer better privacy and protection , therefore, they tend to be more expensive.

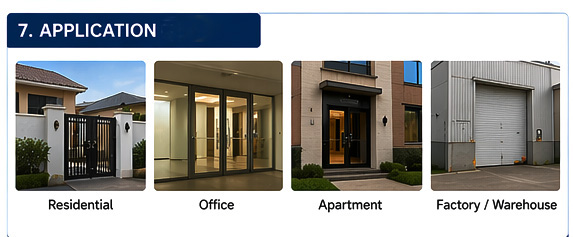

4、Where Can Electric Rim Locks Be Used for ?
Electronic rim locks are widely used：
Various Scenarios：
- Apartment Entrances
- Office Access Systems
- Warehouse and Industrial Doors
Door Types :
- Wooden Doors
- Metal Gates
5、How to Install an Electric Rim Lock?
Step 1 Determine the Installation Position for Lock Body :You need to secure the electronic rim lock to the door surface, and then carefully mark the positions for the lock body and strike plate.
Step 2 Fix the Rim Lock Body on the Door: After marking the location, you can use an electric drill to make holes, and then use screws to secure the rim lock body and keep it stable.
Step 3 Connect Power Supply and Wiring : You can connect the lock to the power source according to the instructions provided by lock manufacturer.It is usually DC 12V or DC 24V ,Finally, you need to make sure there are no problems with the connection lines.
Step 4 Connect to Access Control System:If your home door offers a high-end smart home system, you can choose to associate your electronic rim lock with the following access control systems such as Keypad, RFID Card, Fingerprint Recognition, and Intercom System ,They can enable comprehensive intelligent control for your home.
Step 5 Test the Function for Lock: You can first turn on the power and ensure the unlocking is smooth, the mechanical key functions correctly, the latch operates smoothly, and the lock body is not loose.
6、How to Choose the Right Electric Rim Lock?
When you want to purchase an electric rim lock, you need to consider the following factors:
- Voltage: DC 12V or DC 24V Available.
- Door Type: Wooden door VS Metal door
- Opening Direction: Left-opening and Right-opening
- Material: Bras,Zinc Alloy, Stainless Steel,Aluminum Alloy
If you need to customize an engineering project, you need to know that different configuration requirements have different application scenarios.Brass is a high-end component when it as a material for core parts.

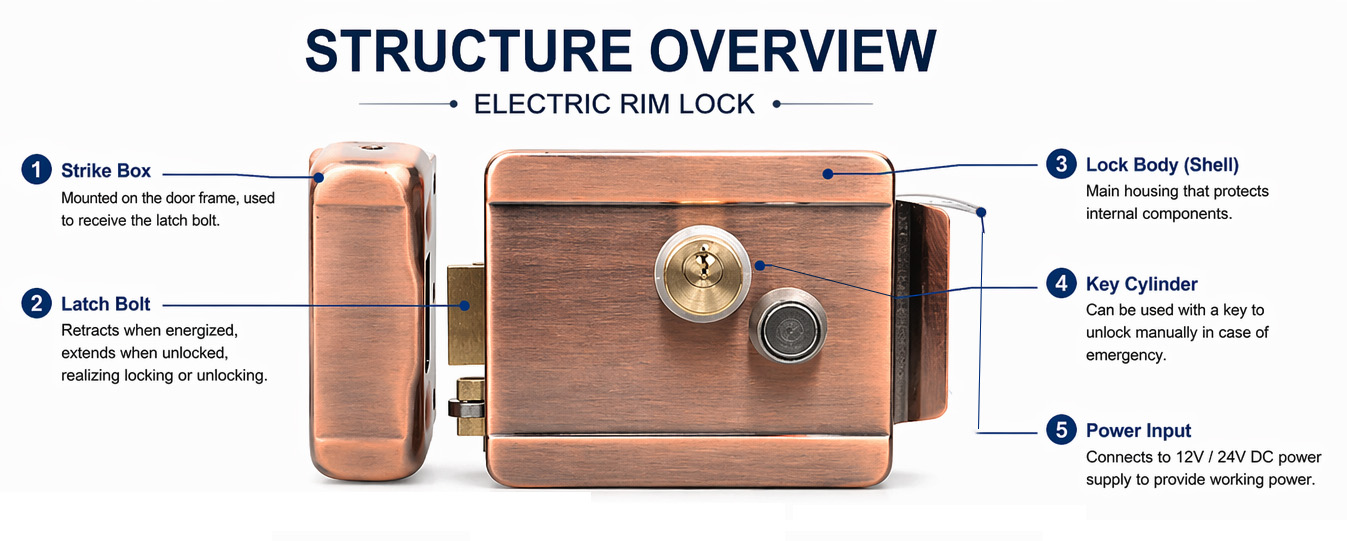

7、What Are the Components Of An Electric Rim Lock?
（1）Electronic rim lock with structure
- Lock Body (Lock Case)
- Power Supply System
- Latch Bolt (Spring Latch)
- Deadbolt
- Rim Cylinder
- Mechanical Key
- Strike Plate
- Some Fixing Screws

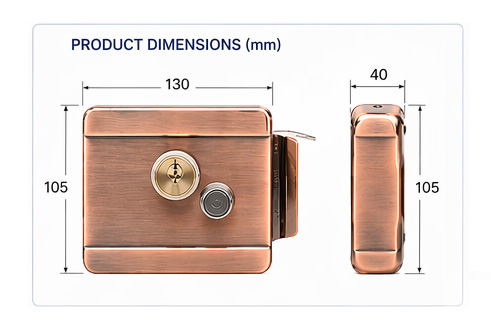

（2）Electronic rim lock with dimension drawing
8、Some Common FAQ
（1）Is it suitable for outdoor use?
Yes, most electronic rim locks have an IP66 or higher waterproof rating. They can withstand long-term exposure to humid outdoor environments.
（2）Why can’t my electric rim lock be unlocked?
You need to check if the power supply and wiring are properly connected.
（3）Can it work without electricity?
Most electric locks come with a mechanical key, which can also be used to unlock the door. This is convenient when there is no power connection.
9、Conclusion
It can enhance security for modern doors by combining mechanical structure and electrical control.Whether it’s a traditional rim lock or an electronic rim lock, if you want to protect your privacy, you must understand that Proper Installation, Correct Circuit Connection, and choosing the Right Type(Lock Type or Door Type) are key to ensuring its stable operation. Of course, high-quality materials are also essential.
10、Why Choose Electric Rim Locks From JW-LOCK ?
- Direct Factory Access ,Located in Jiangsu, China
- Get Preferential Prices From JW-LOCK Team
- Accept Custom Orders and Produce for You
- Fast Delivery for Goods
We provide reliable Electric Rim Locks and Mechanical Rim Locks with various styles for different commercial door projects.If you are interested in our locks after reading this article, you can send us a message immediately, and our professional team will develop a lock solution for your market right away.
